The specifications for ceramic tile lined chips

There are many clients who are concerned about the specification of ceramic lined tile sheet, because it is related to whether the ceramic chip purchased can be used.

Wear resistant ceramic lining is AL203 as the main material, with rare metal oxide as solvent, after more than 1700℃ high temperature roasting to special ceramic, embedded into rubber , polyurethane or mild steel for the purpose of low to moderate impact and highly abrasive sliding application.

Anti-corrosion service life.

Main performance indicators: The wear resistance of the ceramic work surface is more than 100 times that of manganese steel, 20 times that of high chromium cast iron, and several times to several dozen times higher than that of wear resistant rubber. Ceramic metal bonding strength up to 300kg/cm2 can be used up to 500°C.

Production details of the wear resistant alumina ceramic tiles

Install ceramic tile lined chips

The use of equipment made of wear-resistant ceramics, the service life can be increased by more than five times, and the performance-cost ratio can be increased by more than three times.

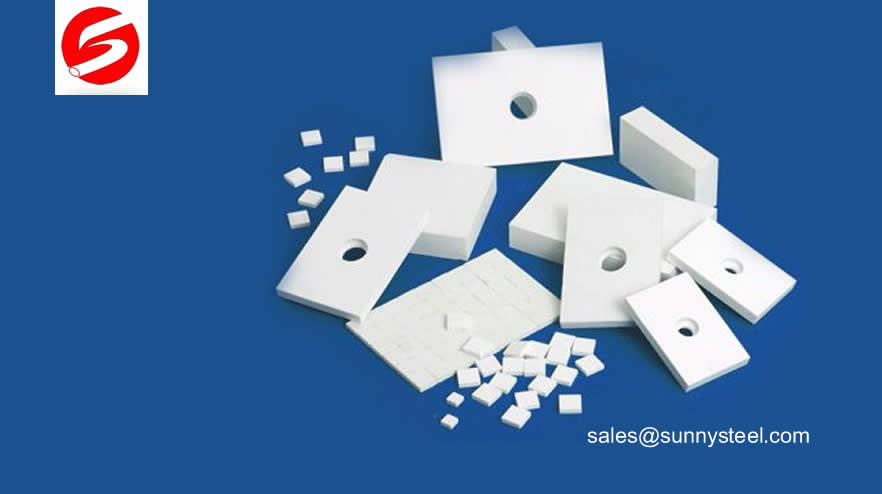

Various specifications of wear-resistant ceramic tile patch

Welding type wear resistant ceramic tiles

Wear-resistant ceramic performance characteristics:

Hardness, general hardness is greater than HRA80, the highest can reach 92 or more.
Excellent wear resistance: at least 200 of ordinary carbon steel and 10 times more than high chromium cast iron.
Light weight: The specific gravity of alumina is generally only about 3.6, silicon carbide is about 2.7, and zirconia is about 6.
Good heat resistance: The heat resistance of different wear-resistant ceramics is not the same, but it is used for particle-resistant scouring, and there is no problem in heat resistance.

Why Ceramic Coating?

Ceramic coating is used by the OE’s extensively on 2007 & newer exhaust.
Ceramic coating is recommended for parts that are exposed to extreme heat.
Ceramic coating is used inside of chrome stacks to reduce the outside temperature of the pipe.
Ceramic coating will increase the longevity of the chrome stack.
Ceramic coating produces more usable power.
Ceramic coating protects parts from thermal fatigue.

Backpack wear resistance ceramic elbow with flange

Six performance summary of the composite pipe of the ceramic composite pipe 1, good wear resistance Ceramic composite pipe with inner liner for ceramic corundum (a-AL2 (subscript) O3 (subscript, similarly hereinafter), Mohs hardness can reach 9.0 rather than hrc90. Therefore, the grinding medium of all industries are highly resistant to wear. The industrial operation confirmed: its wear life is ten times the quenching steel or even dozens of times. 2, running resistance: Ceramic composite pipe due to the smooth surface of the inner surface is better than any metal pipe, water resistance coefficient of 0.0193, slightly lower than the seamless tube. 3, corrosion resistance, anti fouling: Since the ceramic layer is (a-AL2O3), it is a neutral material. Therefore has the acid alkali and water resistance, and at the same time with anti - scale and so on. 4, heat resistance and heat shock resistance performance is good: As the corundum ceramic (a-AL2 (subscript) O3 (subscript)) is a single st

Sleeve Type Expansion Joints

Sleeve Type Expansion Joints are primarily designed to compensate for thermal expansion but it is not the only movement being imposed on the pipeline system. Other types of movements can occur that need to be taken into account when providing a pipework flexibility solution such as building settlement, wind loading, vibration from rotating and reciprocating machinery. Related Ceramic lined pipe Ceramic lined pipe is made through self-propagating high-temperature synthesis (SHS) technique. The sleeve type expansion joint is also called tube compensator, pipe expansion joints, which is used for hot fluid pipelines, mainly applied to the laying of straight pipelines. And the working medium can be hot water, steam, oil, etc. The sleeve expansion joint does thermal expansion by sliding its external sleeve. Sleeve compensator Types of Sleeve Type Expansion Joint: Buried sleeve expansion joint: Using advanced sealing structure and sealing materials with the features of easy installation&

High-chromium alloy Bi-metal pipe elbows

We are manufacturer of High-chromium alloy Bi-metal pipe elbows and supply high quality High-chromium alloy Bi-metal pipe elbows in both large and small quantities worldwide and offer you the best prices in the market. These Steel-High-chromium alloy Bi-metal pipe elbows is a new type of abrasion proof piping developed by our company. Outer of straight pipe is common steel pepe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Compared with traditional wear-resistant alloy cast iron, wear-resistant alloy cast steel, general cladding steel pipe and cast stone pipe. 1. Good wear-resistance, giving full play to wear-resistance of high chromium cast iron. 2. Withstanding high pressure: It can be used for any pressure rating. Close bonding of outer and lining by adopting special process so that cladding interlayer is molten-joint to ensure reliable operation. 3. Good mech

Bimetal composite pipe

Compared with corrosion-resistant alloy pipe, bimetal composite pipe has higher strength. 1. Good Abrasion Resistance： Compared with common steel pipe with internal anti-corrosion coating, bimetal composite pipe has better abrasion resistance. 2. Good Heat Resistance： Compared with FRP/GRP pipe, bimetal composite pipe has better heat resistance. 3. Cost Effective ： Low-cost base pipe, fewer CRA layer or lining pipe and optimal design of wall thickness make bimetal composite pipe cost effective. 4. Safety & Reliability： The patented technology, special equipment and manufacturing process are used to guarantee surface quality of bimetal composite pipe and corrosion resistance of welding seam, ensure safe and reliable operation. 5. Lower Operating Costs： Bimetal composite pipe can remarkably reduce maintenance and management expenses during the operation. Quality Control System quality control systems of bimetal composite pipes and pipe fittings Advanced Testing Equipment advanced te

Bimetal Cladding Steel Pipe

Bi-metal Cladding Steel Pipe Bi-metal Clad Pipe and Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. 1. Manufacturing Process of Bimetal Clad Pipe and Bend: Bimetal Clad Pipe and Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Bends and other profile sections can be cladded in whole and this process has changed the traditional practice to fabricate bend and other profile sections by drawing polyline without changing flow pattern of material inside piping,greatly reducing conveyance resistance of material. 2. Advantages Compared with Traditional Wear Resistant Alloy Cast Iron, Alloy Cast Steel, G

wear resistant ceramic elbow with backpack

Application range 1, coal pulverizing system of power plant pipeline, including, powder transmission pipeline, thick powder separator pipeline, coal drop pipe, combustion system of a wind pipe, a secondary air pipe, three pipeline and burner pipelines, in addition to ash slagging system the discharge pipe, powder pipe, dry ash conveying pipe; 2, iron and steel plant raw material conveying pipeline, collecting pipe, dust pipe, ash pipe, ash pipe, mixing pipe, grinding export pipeline, coal pipeline, coal pipeline, separator pipe, burner radius pipe, etc.; 3, cement plant selection machine outlet pipe, choose machine inlet pipe, pipe dust pipe, vertical mill outlet pipe, circulating air duct, high temperature air blower, lower material pipe, etc.; 4, petroleum, chemical, mining, coal, coal washing plant, smelting, paper, aluminum, building materials, powder engineering, food machinery and other processing and conveying material pipe. Concrete case Application of metallurgy, electric powe

Types of wear-resistant ceramic pipe and its application in industrial production

Including abrasion resistant ceramic pipe elbow, straight pipe , structural tee, head size, radius sections , adjustable pipe , mainly used for the air force , pumping slurry pipeline and other materials . Because the transmission medium with high hardness, flow speed , flow characteristics, can effectively reduce the transmission medium to the wall to produce long-lasting impact, abrasion , corrosion fatigue causes the pipe was gradually worn out speed. 1 , the definition of wear-resistant ceramic pipe Depending on the working conditions of wear on the wear-resistant ceramic pipe lining materials have different choices. Resistant ceramic lined pipe ( lining of aluminum oxide , silicon carbide , zirconia, silicon nitride , sialon , aluminum nitride, boron nitride , etc. ) ; resistant alloy tube ; hexsteel wearable pipe fittings ; rubber resistant steel grinding tube ; wear-resistant plastic tube ; wear-resistant cast stone pipe ; wearable self-propagating composite pipe ; rare earth al

Ceramic sleeve lined Pipe

The ceramic tube or ceramic sleeve sintered as a whole part, and then assemble it into the steel pipe with our high-strength-temperature-resistant epoxy adhesive. The ceramic sleeve lined pipe has a smooth inner wall, excellent tightness as well as good wear and chemical resistance ability. Alumina ceramic sleeve lined pipe with flange Ceramic sleeve lined pipe with flange Ceramic sleeve lined reducer Alumina ceramic sleeves lined pipe Alumina ceramic sleeve lined pipe export to australia 95% alumina ceramic sleeve lined pipes, elbows and T pipes have been largely applied in lithium battery material conveying system in recently years. Wear abrasion stainless ceramic pipes with below advantages: Better purity for inside and outside pipe materials; More abrasive; Higher corrosion resistance; Stronger impacting resistance; Better high temperature resistance Smaller flatness of inside pipe(ceramic flatness≤0.5mm) In addition, the flatness of ceramic casing is also an important factor affec

Ceramic lined pipe
