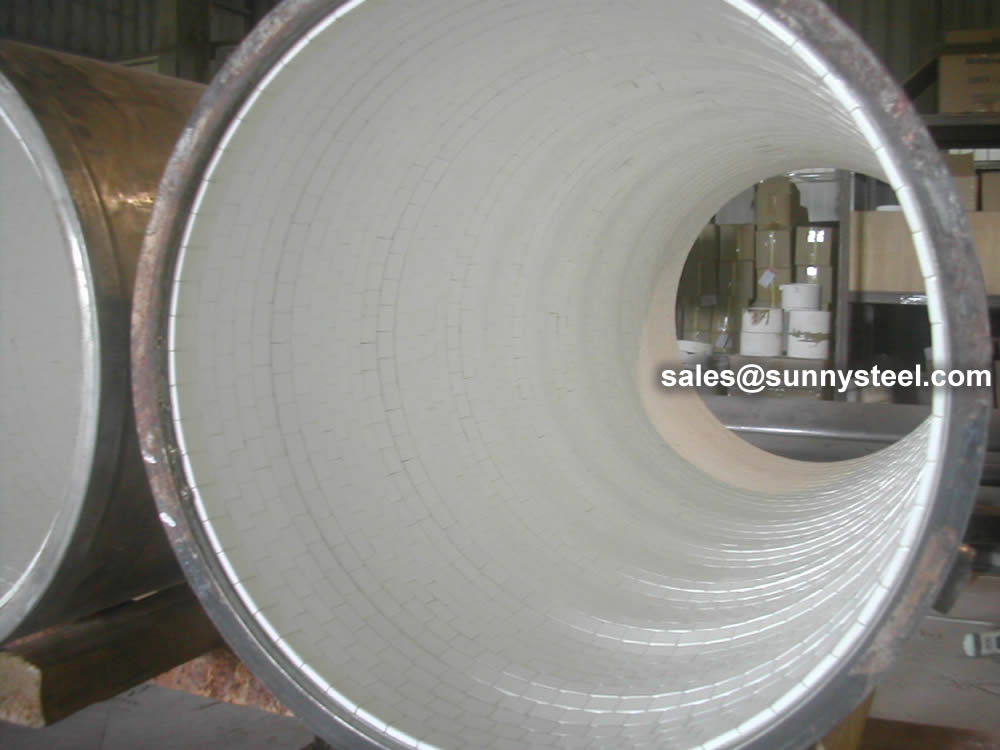

Large diameter ceramic lined tile pipe

The Ceramic tile lined pipe spool is composed by steel pipe, adhensive and abrasion-resistant ceramic, we use 20 # seamless steel pipes shaping with hot bending (it is different from centrifugal casting or steel plate rolling), the ceramic tiles bonding with GWJ-350 high temperature-resistant inorganic adhesive which was developed by TsingHua University and affix abrasion-resistant ceramic in the steel pipes, we use miss match installation instead of directly bonding (this technology was used in the bridge building a thousand years ago), and forms a firm wear-resistance layer after heating solidification. Ceramic tile lined pipe spool is applicable for the pneumatic powder-feeding, and can be used under a temperature of 350℃without aging and peeling for long life. The service life is 4-5 times than the normal abrasion-resistant pipes.

Advantage

Super wear-resistant, high density: we use 95% of chromium corundum, 100 tons dry-pressing.
Elbows formed by hot-bending, the outside of the bending part are seamless which is wear-resistant and can prolong the service life.
Firmly bonding without pealing: we use epoxy adhesive and miss-match installation technology, so that there is no straight-seam.
High temperature and ageing resistance: we abandon the traditional organic bond, and use inorganic bond which is ageing resistance.
High pressure resistance: We use 20# seamless steel pipe, which is high pressure resistance and avoiding welding leakage.
The pipe with smooth inner wall which can make the materials flow smoothly: we use seamless steel pipes which has smooth inner wall that can reduce weariness, and the height tolerance of ceramics is below 0.5mm.

Application Guidance

Avoid welding on site, the welding layer should be 30mm above the ceramic layers; according to our experiences, if you need a shot welding (for example spot welding) or must welding, watering after welding, which will reduce the damage of the adhesive layer.
Avoid striking and throwing the pipes during transportation and installation.
To achieve the best abrasion-resistant solutions, thicken ceramic liners can be used in the elbow which has serious abrasions.

Features

Ceramic tile lined pipe is our company to absorb similar products at home and abroad on the basis of advanced technology developed a shell for the steel body, within the wear-resistant ceramic tube of the new composite pipe products, with high wear resistance long service life And so on

The use of anti-off porcelain tube, porcelain tube mosaic, so that paste more flat, more solid with a strong inorganic adhesive paste, wear-resistant steel bowl welding, porcelain and steel body combined to form a double reinforcement to ensure that the porcelain tube does not fall off. The installation of flexible, high wear resistance, processing convenience, the cost is moderate.

High hardness
Rockwell hardness of high alumina ceramics is up to HRA80-90 which is second only to diamond and far exceeds wear-resistant steel stainless

Excellent wear resistance
The wear resistance of high alumina ceramics is 266 times that of manganese steel and 171.5 times that of high chromium cast iron. According to our investigation & follow-up to the clients, the service life of equipment can be prolonged over 10 times under the same working conditions.

Corrosion resistance
High alumina ceramics are inorganic oxides with extremely stable molecular structure and no electrochemical corrosion, thus they can resist erosion of acid, alkali, salt solutions and organic Solvents.

Thermostability
Working temperature of high alumina ceramics can be as high as 1400℃.

Good self-lubricity
High alumina ceramics have the properties of self-lubricity and in adhesion, the roughness is only 1/6 that of steel pipes thus less flow Resistance.

Light weight
The density of high alumina ceramics is about 3.6g/cm3, which is only half that of steel, thus easy for construction and installation.

Backpack wear resistance ceramic elbow with flange

Six performance summary of the composite pipe of the ceramic composite pipe 1, good wear resistance Ceramic composite pipe with inner liner for ceramic corundum (a-AL2 (subscript) O3 (subscript, similarly hereinafter), Mohs hardness can reach 9.0 rather than hrc90. Therefore, the grinding medium of all industries are highly resistant to wear. The industrial operation confirmed: its wear life is ten times the quenching steel or even dozens of times. 2, running resistance: Ceramic composite pipe due to the smooth surface of the inner surface is better than any metal pipe, water resistance coefficient of 0.0193, slightly lower than the seamless tube. 3, corrosion resistance, anti fouling: Since the ceramic layer is (a-AL2O3), it is a neutral material. Therefore has the acid alkali and water resistance, and at the same time with anti - scale and so on. 4, heat resistance and heat shock resistance performance is good: As the corundum ceramic (a-AL2 (subscript) O3 (subscript)) is a single st

Sleeve Type Expansion Joints

Sleeve Type Expansion Joints are primarily designed to compensate for thermal expansion but it is not the only movement being imposed on the pipeline system. Other types of movements can occur that need to be taken into account when providing a pipework flexibility solution such as building settlement, wind loading, vibration from rotating and reciprocating machinery. Related Ceramic lined pipe Ceramic lined pipe is made through self-propagating high-temperature synthesis (SHS) technique. The sleeve type expansion joint is also called tube compensator, pipe expansion joints, which is used for hot fluid pipelines, mainly applied to the laying of straight pipelines. And the working medium can be hot water, steam, oil, etc. The sleeve expansion joint does thermal expansion by sliding its external sleeve. Sleeve compensator Types of Sleeve Type Expansion Joint: Buried sleeve expansion joint: Using advanced sealing structure and sealing materials with the features of easy installation&

High-chromium alloy Bi-metal pipe elbows

We are manufacturer of High-chromium alloy Bi-metal pipe elbows and supply high quality High-chromium alloy Bi-metal pipe elbows in both large and small quantities worldwide and offer you the best prices in the market. These Steel-High-chromium alloy Bi-metal pipe elbows is a new type of abrasion proof piping developed by our company. Outer of straight pipe is common steel pepe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Compared with traditional wear-resistant alloy cast iron, wear-resistant alloy cast steel, general cladding steel pipe and cast stone pipe. 1. Good wear-resistance, giving full play to wear-resistance of high chromium cast iron. 2. Withstanding high pressure: It can be used for any pressure rating. Close bonding of outer and lining by adopting special process so that cladding interlayer is molten-joint to ensure reliable operation. 3. Good mech

Bimetal composite pipe

Compared with corrosion-resistant alloy pipe, bimetal composite pipe has higher strength. 1. Good Abrasion Resistance： Compared with common steel pipe with internal anti-corrosion coating, bimetal composite pipe has better abrasion resistance. 2. Good Heat Resistance： Compared with FRP/GRP pipe, bimetal composite pipe has better heat resistance. 3. Cost Effective ： Low-cost base pipe, fewer CRA layer or lining pipe and optimal design of wall thickness make bimetal composite pipe cost effective. 4. Safety & Reliability： The patented technology, special equipment and manufacturing process are used to guarantee surface quality of bimetal composite pipe and corrosion resistance of welding seam, ensure safe and reliable operation. 5. Lower Operating Costs： Bimetal composite pipe can remarkably reduce maintenance and management expenses during the operation. Quality Control System quality control systems of bimetal composite pipes and pipe fittings Advanced Testing Equipment advanced te

Bimetal Cladding Steel Pipe

Bi-metal Cladding Steel Pipe Bi-metal Clad Pipe and Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. 1. Manufacturing Process of Bimetal Clad Pipe and Bend: Bimetal Clad Pipe and Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Bends and other profile sections can be cladded in whole and this process has changed the traditional practice to fabricate bend and other profile sections by drawing polyline without changing flow pattern of material inside piping,greatly reducing conveyance resistance of material. 2. Advantages Compared with Traditional Wear Resistant Alloy Cast Iron, Alloy Cast Steel, G

wear resistant ceramic elbow with backpack

Application range 1, coal pulverizing system of power plant pipeline, including, powder transmission pipeline, thick powder separator pipeline, coal drop pipe, combustion system of a wind pipe, a secondary air pipe, three pipeline and burner pipelines, in addition to ash slagging system the discharge pipe, powder pipe, dry ash conveying pipe; 2, iron and steel plant raw material conveying pipeline, collecting pipe, dust pipe, ash pipe, ash pipe, mixing pipe, grinding export pipeline, coal pipeline, coal pipeline, separator pipe, burner radius pipe, etc.; 3, cement plant selection machine outlet pipe, choose machine inlet pipe, pipe dust pipe, vertical mill outlet pipe, circulating air duct, high temperature air blower, lower material pipe, etc.; 4, petroleum, chemical, mining, coal, coal washing plant, smelting, paper, aluminum, building materials, powder engineering, food machinery and other processing and conveying material pipe. Concrete case Application of metallurgy, electric powe

Types of wear-resistant ceramic pipe and its application in industrial production

Including abrasion resistant ceramic pipe elbow, straight pipe , structural tee, head size, radius sections , adjustable pipe , mainly used for the air force , pumping slurry pipeline and other materials . Because the transmission medium with high hardness, flow speed , flow characteristics, can effectively reduce the transmission medium to the wall to produce long-lasting impact, abrasion , corrosion fatigue causes the pipe was gradually worn out speed. 1 , the definition of wear-resistant ceramic pipe Depending on the working conditions of wear on the wear-resistant ceramic pipe lining materials have different choices. Resistant ceramic lined pipe ( lining of aluminum oxide , silicon carbide , zirconia, silicon nitride , sialon , aluminum nitride, boron nitride , etc. ) ; resistant alloy tube ; hexsteel wearable pipe fittings ; rubber resistant steel grinding tube ; wear-resistant plastic tube ; wear-resistant cast stone pipe ; wearable self-propagating composite pipe ; rare earth al

Ceramic sleeve lined Pipe

The ceramic tube or ceramic sleeve sintered as a whole part, and then assemble it into the steel pipe with our high-strength-temperature-resistant epoxy adhesive. The ceramic sleeve lined pipe has a smooth inner wall, excellent tightness as well as good wear and chemical resistance ability. Alumina ceramic sleeve lined pipe with flange Ceramic sleeve lined pipe with flange Ceramic sleeve lined reducer Alumina ceramic sleeves lined pipe Alumina ceramic sleeve lined pipe export to australia 95% alumina ceramic sleeve lined pipes, elbows and T pipes have been largely applied in lithium battery material conveying system in recently years. Wear abrasion stainless ceramic pipes with below advantages: Better purity for inside and outside pipe materials; More abrasive; Higher corrosion resistance; Stronger impacting resistance; Better high temperature resistance Smaller flatness of inside pipe(ceramic flatness≤0.5mm) In addition, the flatness of ceramic casing is also an important factor affec

Ceramic lined pipe
