The ceramic-lined steel pipe

The ceramic-lined steel pipe is made by self-propagating high-temperature synthesis-centrifugal method. The melting point of corundum in the ceramic steel pipe is 2045 °C. The corundum layer and the steel layer have special structure due to process reasons, and the stress field is also special.

At normal temperature, the ceramic layer is subjected to compressive stress, and the steel layer is subjected to tensile stress, and the two are opposite to each other and form a balanced whole.

Free equilibrium state

Only when the temperature rises above 400 °C, the thermal stress coefficient is different, and the new stress field generated by thermal expansion and the original stress field in the ceramic steel pipe cancel each other out, so that the ceramic layer and the steel layer are in a free equilibrium state.

 When the temperature is raised to 900 °C, the ceramic-lined steel pipe is placed in the hydrophobic water, repeatedly soaked several times, the composite layer is not cracked or cracked, showing the unmatched thermal shock resistance of ordinary ceramics. This performance is very useful in engineering construction.

Mechanical impact resistance

Because the outer layer is steel, and the inner layer does not crack when it is heated, flanges, purge ports, explosion-proof doors, etc. can be welded during construction, and can also be connected by direct welding method, which is better than wear-resistant cast stone pipe. Wear-resistant cast steel pipe, rare earth wear-resistant steel pipe, bi-metal composite pipe, steel-plastic pipe and steel rubber pipe are not easy to weld or can not be welded in construction.

The ceramic-lined steel pipe has good mechanical impact resistance, and the composite layer does not rupture and fall off during transportation, installation and knocking, and self-weight bending deformation between the two brackets.

High abrasion resistance

The ceramic-lined steel pipe has high abrasion resistance and strong resistance to fluid scouring. In a single air duct, the elbow wears quickly, and the wear resistance of the ceramic-lined steel pipe elbow is more than 5 times higher than that of the thick-walled wear-resistant cast steel elbow. In practice, the ceramic-lined steel pipe is opened and observed and measured after 1-2 years. The composite layer has no obvious wear or shedding.

In the same specification and unit length of the pipe, the ceramic-lined steel pipe weighs only the wear-resistant cast steel pipe. Or about 1/2 of the bimetallic composite pipe, its engineering cost per metre is reduced by 30-40%, only about 2/5 of the weight of the cast stone pipe and the rare earth wear-resistant steel pipe, and the engineering cost per meter is reduced by more than 20%. Ceramic-lined steel pipes used in corrosive or high-temperature places are only a fraction of the price of stainless steel pipes and nickel-titanium pipes.

The fluid conveying seamless steel pipe is not only used in the power industry, but also in metallurgy, coal, petroleum, chemical, building materials, machinery and other industries.

When the material with large grouting material is transported in the pipeline (such as ash, coal powder, mineral fine powder, tailings cement, etc.), there is a problem that the pipeline wears quickly, especially the elbow wears quickly; When there is a strong corrosive gas, liquid or solid, there is a problem that the pipe is corroded and is quickly destroyed; when the material having a higher temperature is transported in the pipe, there is a problem that the use of the heat-resistant steel pipe is very expensive. With the ceramic-lined steel pipe available, these problems are solved.

Sleeve Type Expansion Joints

Sleeve Type Expansion Joints are primarily designed to compensate for thermal expansion but it is not the only movement being imposed on the pipeline system. Other types of movements can occur that need to be taken into account when providing a pipework flexibility solution such as building settlement, wind loading, vibration from rotating and reciprocating machinery. Related Ceramic lined pipe Ceramic lined pipe is made through self-propagating high-temperature synthesis (SHS) technique. The sleeve type expansion joint is also called tube compensator, pipe expansion joints, which is used for hot fluid pipelines, mainly applied to the laying of straight pipelines. And the working medium can be hot water, steam, oil, etc. The sleeve expansion joint does thermal expansion by sliding its external sleeve. Sleeve compensator Types of Sleeve Type Expansion Joint: Buried sleeve expansion joint: Using advanced sealing structure and sealing materials with the features of easy installation...

Sleeve Type Expansion Joints

Sleeve Type Expansion Joints are primarily designed to compensate for thermal expansion but it is not the only movement being imposed on the pipeline system. Confirmed and drawing by our engineer Other types of movements can occur that need to be taken into account when providing a pipework flexibility solution such as building settlement, wind loading, vibration from rotating and reciprocating machinery. The sleeve type expansion joint is also called tube compensator, pipe expansion joints, which is used for hot fluid pipelines, mainly applied to the laying of straight pipelines. And the working medium can be hot water, steam, oil, etc. The sleeve expansion joint does thermal expansion by sliding its external sleeve.

Tubes Erosion Shields

Tubes Erosion Shields are used to reduce excess wear of boiler tubes within the extreme conditions prevalent inside a fossil fuel fired boiler, Sunny Steel is able to manufacture and supply erosion shield solutions to protect and reduce wear in all applicable boiler related situations. Boiler Tube Shields are designed to eliminate major maintenance and downtime costs from boiler and condenser tube failure. Advantages Tube Shields are custom made to fit perfectly to straight sections, curved sections and even finned and specialised tubing. Boiler Tubes Erosion Shields, also known as anti-corrosion Shields, anti-wear plate, anti-wear protection Shields, anti-wear cover plate, anti-corrosion cover plate, boiler climbing pipe, anti-wear pressure plate, etc. , which are used in combination with snap rings. Boiler Tubes Erosion Shields are produced using a high-pressure press and professional mold pressing. The production time is short, the welding performance is good, the welding should not...

wear resistant ceramic elbow with backpack

Application range 1, coal pulverizing system of power plant pipeline, including, powder transmission pipeline, thick powder separator pipeline, coal drop pipe, combustion system of a wind pipe, a secondary air pipe, three pipeline and burner pipelines, in addition to ash slagging system the discharge pipe, powder pipe, dry ash conveying pipe; 2, iron and steel plant raw material conveying pipeline, collecting pipe, dust pipe, ash pipe, ash pipe, mixing pipe, grinding export pipeline, coal pipeline, coal pipeline, separator pipe, burner radius pipe, etc.; 3, cement plant selection machine outlet pipe, choose machine inlet pipe, pipe dust pipe, vertical mill outlet pipe, circulating air duct, high temperature air blower, lower material pipe, etc.; 4, petroleum, chemical, mining, coal, coal washing plant, smelting, paper, aluminum, building materials, powder engineering, food machinery and other processing and conveying material pipe. Concrete case Application of metallurgy, electric powe...

To help you understand the main features of the wear-resistant composite ceramic pipe

The pipeline is a product that has been developed in recent years. This product has received attention from all aspects. It has a unique advantage of its own. It has been firmly established. Wear self propagating ceramic composite pipe is adopted self propagating ceramic composite pipe aluminum material by centrifugation, heat spreading sintering, because of its good abrasion resistance, water resistance, good corrosion resistance and become one of the many projects in the pipeline wear preferred products, self propagating ceramic composite pipe is easy to break and fall but the manufacturing process the traditional production, and the existence of micro crack, has certain influence on the wear resistance of the process, using the international advanced technology of nano materials, add special additives in traditional ingredients, and the sintering temperature to 2800 DEG C (pressurized aeration technology), SHS products, high strength, small micro crack good toughness, not easy to fa...

Ceramic lined pipe expansion joints

Ceramic lined pipe expansion joints are designed to safely absorb the dimensional changes of pipework systems and ducts caused by heat induced expansion and contraction. They are essential in pipework systems that are used to convey substances of a high temperature, such as steam, heated water or exhaust gases. Expansion joints can also be designed for other applications, such as noise and vibration caused by reciprocating machinery, building settlement and in some extreme environments earthquake movement. Expansion joints are very important components with in a pipework system as they not only solve the problems associated with pipework movement but offer such advantages as reducing stresses and loads to connecting equipment such as pumps and steam turbines.

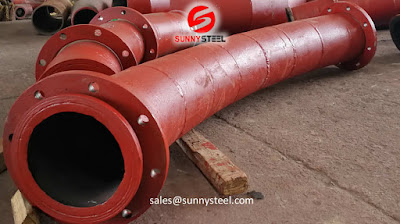

Ceramic Tile Lined Bend

Ceramic tile lined bending have very uniform coating of specially formulated ceramic material that is affixed to the inner of the pipe and gives a very smooth surface. It is well understood that conveying velocity of ash, its density as well as size of ash particles are major factors that determine wear rate of Bends and Y-Pieces. Here, the use of Alumina Ceramic in Ash Handling systems help in lowering the possibility of wear and damages caused to the internals. Here, our expertise lies in filling the linings in casings manufactured at our works or can also be fitted directly in worn out volute casing at plant site. Well package of Alumina Ceramic Lined Bends Some of the industry areas where these are used include: Coal Fired Thermal Power Projects Mineral processing units Steel Plants Cement Plants Coal and Mineral washeries Aluminium plants

Alumina ceramic lined pipes

Ceramic Tile Lined Steel Pipes have very uniform coating of specially formulated ceramic material that is affixed to the inner of the pipe and gives a very smooth surface. Ceramics with very low friction factor at low impingement angles decreases the abrasion of materials maximally. Its low density makes it easy to carry and install. Furthermore, its diamond-like hardness, fine grain structure and superior mechanical strength are the unique features that make it a wide range of demanding applications, such as coal preparation, power generation, iron and steel making, cement, asphalt, dredging, mining and mineral processing, oil and gas drilling. The Ceramic Tiles could protect Industrial Components against abrasion, impact wear and high temperature of above 1000C. Standard Flat Tiles of Square & Rectangular Shape having thickness of 6 to 50 mm, with or without central hole are available. Materials: seamless mild steel pipe plus 95% alumina ceramics for liner Designed pressure: >...
