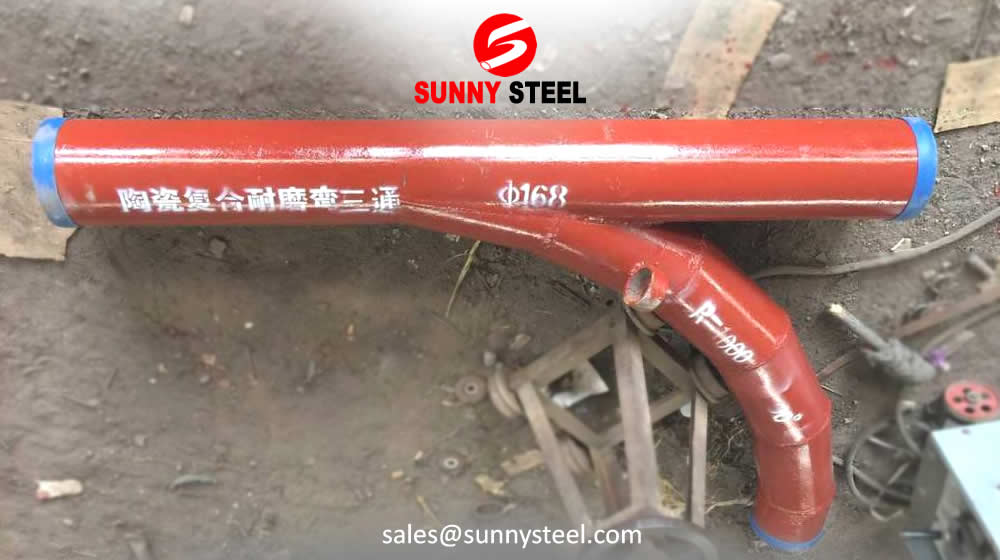

Ceramic lined composite Y-type Tee

We specialize in Ceramic lined composite Y-type Tee and flow conditioning assemblies to tame the most demanding flow applications.

Abrasion
Ceramic layer Ceramic Lined Reducer Pipe with flange reducer Al2O3 content greater than 89% , micro-hardness HV1000-1500, which has a high abrasion resistance, wear resistance than ten times higher than carbon steel after quenching , superior tungsten carbide drill.

Application range

coal pulverizing system of power plant pipeline, including, powder transmission pipeline, thick powder separator pipeline, coal drop pipe, combustion system of a wind pipe, a secondary air pipe, three pipeline and burner pipelines, in addition to ash slagging system the discharge pipe, powder pipe, dry ash conveying pipe;
iron and steel plant raw material conveying pipeline, collecting pipe, dust pipe, ash pipe, ash pipe, mixing pipe, grinding export pipeline, coal pipeline, coal pipeline, separator pipe, burner radius pipe, etc.;
cement plant selection machine outlet pipe, choose machine inlet pipe, pipe dust pipe, vertical mill outlet pipe, circulating air duct, high temperature air blower, lower material pipe, etc.;
petroleum, chemical, mining, coal, coal washing plant, smelting, paper, aluminum, building materials, powder engineering, food machinery and other processing and conveying material pipe.

Corrosion

Ceramic materials are neutral , chemically stable , has excellent corrosion resistance and acid resistance , resistant to various inorganic acids, organic acids , organic solvents , and its degree of corrosion of stainless steel is more than ten times.

Temperature

Temperature above 2000celsius degree, long-term work in the range of -50 -900 celsius degree.

Easy welding

Ceramic adjustable tube can be welded , flanged , flexible connectors and other fast way links , very easy to install.

Clean and easy maintenance

Smooth wall, can prevent scaling , fouling, self-cleaning function. Tightness.

Remarks:

Under the direction of the arrow diagram for the export direction.
Bend radius is usually 1.5-5 times the diameter of steel pipe (1.5-5D).
Othe specifications of the compsite pipe can be manufactured accord to the user requirments.
The weight is caculate by theoretics, maybe have some tolerance, the real weight will be weigh in afer them finished.

Hoop strength is the resistance against radial pressure. The strength of the ceramic -lined steel composite pipe is 300 to 500MPa.
