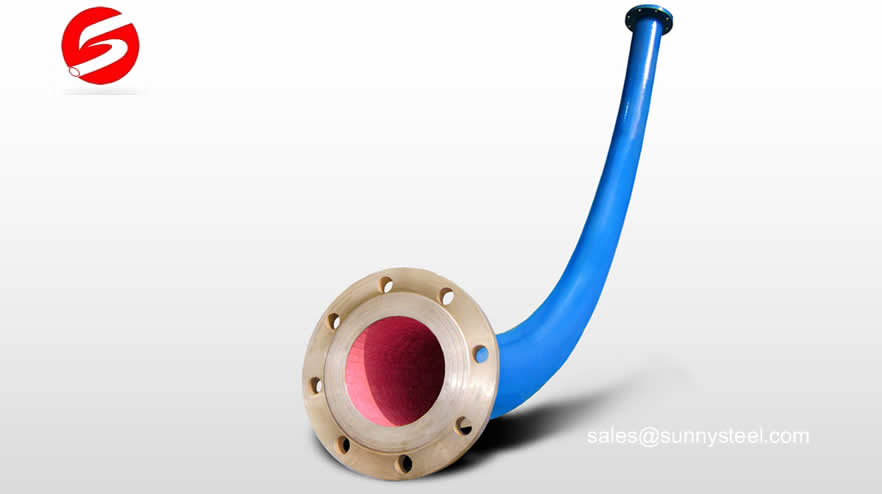

Ceramic Tile Lined Bend

Ceramic tile lined bending have very uniform coating of specially formulated ceramic material that is affixed to the inner of the pipe and gives a very smooth surface.

It is well understood that conveying velocity of ash, its density as well as size of ash particles are major factors that determine wear rate of Bends and Y-Pieces. Here, the use of Alumina Ceramic in Ash Handling systems help in lowering the possibility of wear and damages caused to the internals. Here, our expertise lies in filling the linings in casings manufactured at our works or can also be fitted directly in worn out volute casing at plant site.

Well package of Alumina Ceramic Lined Bends

Some of the industry areas where these are used include:

Coal Fired Thermal Power Projects
Mineral processing units
Steel Plants
Cement Plants
Coal and Mineral washeries
Aluminium plants

Backpack wear resistance ceramic elbow with flange

Six performance summary of the composite pipe of the ceramic composite pipe 1, good wear resistance Ceramic composite pipe with inner liner for ceramic corundum (a-AL2 (subscript) O3 (subscript, similarly hereinafter), Mohs hardness can reach 9.0 rather than hrc90. Therefore, the grinding medium of all industries are highly resistant to wear. The industrial operation confirmed: its wear life is ten times the quenching steel or even dozens of times. 2, running resistance: Ceramic composite pipe due to the smooth surface of the inner surface is better than any metal pipe, water resistance coefficient of 0.0193, slightly lower than the seamless tube. 3, corrosion resistance, anti fouling: Since the ceramic layer is (a-AL2O3), it is a neutral material. Therefore has the acid alkali and water resistance, and at the same time with anti - scale and so on. 4, heat resistance and heat shock resistance performance is good: As the corundum ceramic (a-AL2 (subscript) O3 (subscript)) is a single st

Sleeve Type Expansion Joints

Sleeve Type Expansion Joints are primarily designed to compensate for thermal expansion but it is not the only movement being imposed on the pipeline system. Other types of movements can occur that need to be taken into account when providing a pipework flexibility solution such as building settlement, wind loading, vibration from rotating and reciprocating machinery. Related Ceramic lined pipe Ceramic lined pipe is made through self-propagating high-temperature synthesis (SHS) technique. The sleeve type expansion joint is also called tube compensator, pipe expansion joints, which is used for hot fluid pipelines, mainly applied to the laying of straight pipelines. And the working medium can be hot water, steam, oil, etc. The sleeve expansion joint does thermal expansion by sliding its external sleeve. Sleeve compensator Types of Sleeve Type Expansion Joint: Buried sleeve expansion joint: Using advanced sealing structure and sealing materials with the features of easy installation&

wear resistant ceramic elbow with backpack

Application range 1, coal pulverizing system of power plant pipeline, including, powder transmission pipeline, thick powder separator pipeline, coal drop pipe, combustion system of a wind pipe, a secondary air pipe, three pipeline and burner pipelines, in addition to ash slagging system the discharge pipe, powder pipe, dry ash conveying pipe; 2, iron and steel plant raw material conveying pipeline, collecting pipe, dust pipe, ash pipe, ash pipe, mixing pipe, grinding export pipeline, coal pipeline, coal pipeline, separator pipe, burner radius pipe, etc.; 3, cement plant selection machine outlet pipe, choose machine inlet pipe, pipe dust pipe, vertical mill outlet pipe, circulating air duct, high temperature air blower, lower material pipe, etc.; 4, petroleum, chemical, mining, coal, coal washing plant, smelting, paper, aluminum, building materials, powder engineering, food machinery and other processing and conveying material pipe. Concrete case Application of metallurgy, electric powe

Bimetal composite pipe

Compared with corrosion-resistant alloy pipe, bimetal composite pipe has higher strength. 1. Good Abrasion Resistance： Compared with common steel pipe with internal anti-corrosion coating, bimetal composite pipe has better abrasion resistance. 2. Good Heat Resistance： Compared with FRP/GRP pipe, bimetal composite pipe has better heat resistance. 3. Cost Effective ： Low-cost base pipe, fewer CRA layer or lining pipe and optimal design of wall thickness make bimetal composite pipe cost effective. 4. Safety & Reliability： The patented technology, special equipment and manufacturing process are used to guarantee surface quality of bimetal composite pipe and corrosion resistance of welding seam, ensure safe and reliable operation. 5. Lower Operating Costs： Bimetal composite pipe can remarkably reduce maintenance and management expenses during the operation. Quality Control System quality control systems of bimetal composite pipes and pipe fittings Advanced Testing Equipment advanced te

Bimetal Cladding Steel Pipe

Bi-metal Cladding Steel Pipe Bi-metal Clad Pipe and Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. 1. Manufacturing Process of Bimetal Clad Pipe and Bend: Bimetal Clad Pipe and Bend are cast with mold vanishing vacuum suction casting cladding process. Outer of straight pipe is common steel pipe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Bends and other profile sections can be cladded in whole and this process has changed the traditional practice to fabricate bend and other profile sections by drawing polyline without changing flow pattern of material inside piping,greatly reducing conveyance resistance of material. 2. Advantages Compared with Traditional Wear Resistant Alloy Cast Iron, Alloy Cast Steel, G

High-chromium alloy Bi-metal pipe elbows

We are manufacturer of High-chromium alloy Bi-metal pipe elbows and supply high quality High-chromium alloy Bi-metal pipe elbows in both large and small quantities worldwide and offer you the best prices in the market. These Steel-High-chromium alloy Bi-metal pipe elbows is a new type of abrasion proof piping developed by our company. Outer of straight pipe is common steel pepe, cladding realized by forming high chromium lining via centrifugal forming technique. Outer of bend uses hot-bending bend and lining is cast with high-chromium cast iron. Compared with traditional wear-resistant alloy cast iron, wear-resistant alloy cast steel, general cladding steel pipe and cast stone pipe. 1. Good wear-resistance, giving full play to wear-resistance of high chromium cast iron. 2. Withstanding high pressure: It can be used for any pressure rating. Close bonding of outer and lining by adopting special process so that cladding interlayer is molten-joint to ensure reliable operation. 3. Good mech

Ceramic sleeve lined Pipe

The ceramic tube or ceramic sleeve sintered as a whole part, and then assemble it into the steel pipe with our high-strength-temperature-resistant epoxy adhesive. The ceramic sleeve lined pipe has a smooth inner wall, excellent tightness as well as good wear and chemical resistance ability. Alumina ceramic sleeve lined pipe with flange Ceramic sleeve lined pipe with flange Ceramic sleeve lined reducer Alumina ceramic sleeves lined pipe Alumina ceramic sleeve lined pipe export to australia 95% alumina ceramic sleeve lined pipes, elbows and T pipes have been largely applied in lithium battery material conveying system in recently years. Wear abrasion stainless ceramic pipes with below advantages: Better purity for inside and outside pipe materials; More abrasive; Higher corrosion resistance; Stronger impacting resistance; Better high temperature resistance Smaller flatness of inside pipe(ceramic flatness≤0.5mm) In addition, the flatness of ceramic casing is also an important factor affec

Wear Resistant Pipeline in Power and Cement Plant

1.Cement Industry: Cement powderchoosing transmission pipeline, feed hopper, chute, feed bin and so on. 2.Electricity Industry: Coal power plant coal transmission pipeline, fly ash exhaust system, chemical water circulation system, desulfurizing system and all the corrosive areas in the nuclear electrical power plant. 3.Coal Mine Industry: Coal powder, coal water slurry transmission, the air supply system, air exhaust system and drainage system of the mine. 4.Chemical Industry: High corrosive medium transmission, such as strong acid and strong alkali. Salt chemistry brine, salt slurry, raw salt transmission. 5.Petroleum Exploitation Industry: Raw oil transmission, natural gas collection transmission system, waste water recirculation system and so on. 6.Metal production Industry: Transmission of coke powder, mine powder, pulp, smelting waste and so on. 7.Mining Industry: Pulp transmission pipeline, the air supply system, air exhaust system and drainage system of the mine. 8.Dredging Pro

Ceramic lined pipe
